This project lets you build a circuit that mimics the staccato bursts of a machine gun.
A trusty 555 IC chip generates a rapid fire of electrical pulses, controlling the timing of the sound.
These pulses are then translated into sound by the circuit, creating that iconic ‘rat-a-tat-tat’ sound effect.
Want to amplify up the volume? No problem!
You can add an amplifier to make your machine gun sound truly roar.
Circuit Working:
Parts List:
Category | Description | Quantity | Wattage |
---|---|---|---|
Resistors | 100k, 33k | 1 each | 1/4 watt |
Capacitors | Ceramic 10nF | 2 | |
Electrolytic 10μF 25V | 2 | ||
Electrolytic 100μF 25V | 1 | ||
Semiconductors | IC 555 | 1 | |
Transistor BC557 | 1 | ||
Other Components | 8Ω Speaker | 1 |
When the 555 IC is configured in astable mode, it continuously produces a stream of rectangular pulses.
These pulses are designed to sound like a machine gun firing in a repetitive manner.
Below are the circuit working process:
The output signals frequency on pin 3 is adjusted via C1 and R2.
The output signal will be shaped by C2, C3 and C4 to produce a sound akin to a drum or cannon from merely a regular square wave signal.
This is how the signal shaping operates due to C3 the transistor Q1 will be switched off as soon as the output pin 3 becomes high.
C4 will rapidly lower the voltage to the 555 IC while Q1 is off, moreover this will cause the output voltage to decline.
The voltage to the IC 555 will be aggressively reduced by C4.
A gun like sound will also be produced by the output voltage dropping exponentially as a result of this.
The transistor Q1 will switch on once again and the process will restart when the output drops.
Thus, upon activation the 555 chip oscillates generating a quick series of electrical pulses.
The speaker then receives these pulses and converts them into the rapid fire sound of a machine gun.
Formulas:
We want to be able to imitate the sound of machine gun fire by creating a circuit that uses an IC 555 timer in astable mode to produce a succession of fast pulses.
Using the following formula, you can put up the circuit:
Formula for Frequency (f):
In the astable mode of the IC 555 the values of the resistor R and capacitor C define the oscillation frequency f:
f = 1.44 / (R1 + 2R2) *C
where,
- The resistors attached to the IC 555 are R1 and R2.
- There is a timing capacitor C.
Duty Cycle:
The output waveforms duty cycle D is determined by the following formula, which expresses the ratio of the outputs high ON to low OFF times.
D = R2 / R1 + 2R2
To get the appropriate machine gun sound effect, change these parameters as needed.
To simulate rapid machine gun fire lower R1, R2 or C.
This will increase the frequency and provide a quicker firing rate.
How to Build:
To build a Simple Machine Gun Sound Generator Circuit follow the below mentioned steps for connections purpose:

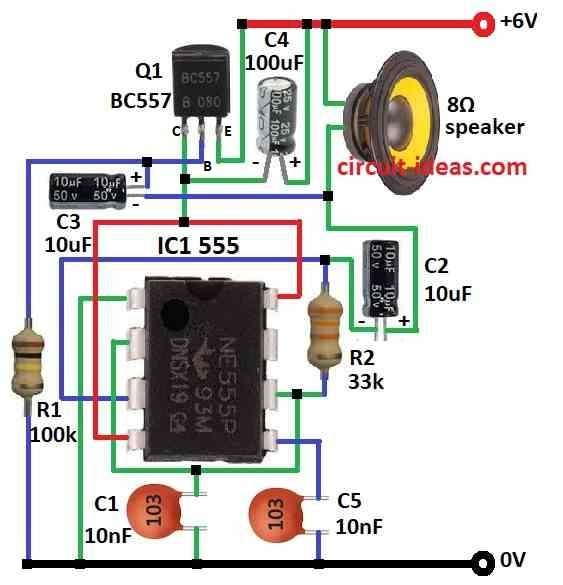

- Gather all the components as mentioned shown in above diagram
- Connect pin 1 of IC 555 to ground.
- Connect pin to pin 6 of IC 555
- Connect capacitor C1 from pin 2 and pin 6 of IC 555 to ground.
- Connect pin 3 to pin 2 and 6 of IC 555 through resistor R2.
- Connect pin 4 of IC 555 to positive supply of 6V.
- Connect pin 5 of IC 555 to ground through capacitor C5.
- Connect pin 6 of IC 555 to pin 2 and pin 3.
- Connect pin 8 of IC 555 to positive supply of 6V.
- Connect transistor Q1 collector to pin 4 and pin 8 of IC 555.
- Connect base of Q1 transistor to ground through resistor R1.
- Connect emitter of Q1 transistor to positive supply of 6V.
- Connect capacitor C4 positive leg to positive supply of 6V and negative leg to collector of transistor Q1.
- Connect capacitor C3 positive leg to base of transistor Q1, and negative leg between one end of 8 ohm speaker and positive leg of capacitor C2.
Safety Measures:
- Remember that loud noises can be annoying and damaging to hearing, even if this activity can be an enjoyable way to learn.
- Always operate the circuit sensibly and loudly enough.
Conclusion
This circuit successfully imitates the rapid fire ‘pop’ of a machine gun by using an astable IC 555 in conjunction with capacitors and a transistor to produce a regulated discharge.
Each part has a distinct function in shaping the electrical pulses that the speaker eventually translates into the intended sound output.
