Simple 30V 1Amp Transformerless Power Supply Circuit

Last updated on 18 June 2025 by Admin-Lavi Leave a Comment

This Simple 30V 1Amp Transformerless Power Supply Circuit works like small adapter for our electronic.

It takes normal high voltage electric and change it to low safe voltage to what our devices need.

No big transformer is required it uses special parts like capacitor and diode to do the work.

Like if we have 30V 1A power supply with no transformer then it may take high voltage and give out 30 volt steady with max 1 amp which is good for small electronic use.

This kind of power supply is good for small project, when we want cheap and easy way to change electric for our gadget.

But this power supply also have some problem which are not so safe because there is no isolation between input and output, so its little risky.

Circuit Working:

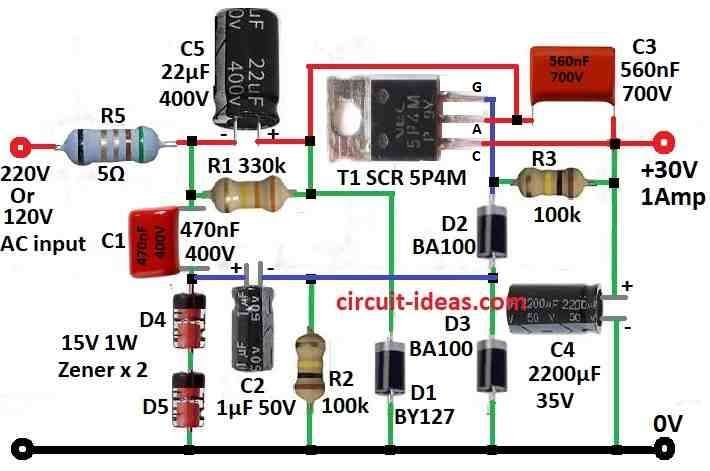

Simple Transformerless Power Supply 30V 1Amp Circuit Diagram

Parts List:

CategoryItemQuantity
Resistors330k 1/4 watt1
5Ω 2W1
100k 1/4 watt2
CapacitorsPPC 470nF 400V1
PPC 560nF 700V1
Electrolytic 1µF 50V1
Electrolytic 2200µF 35V1
Electrolytic 22µF 400V1
SemiconductorsThyristor SCR 5P4M1
Fast diode BY1271
Diode BA1002
Zener 15V 1W2

This circuit is for transformerless power supply which is good for medium current use.

In negative half cycle capacitor C5 get charged to peak voltage from power line.

When positive half wave comes thyristor turn ON and charges from C5 and moves to C4.

Current start flow through thyristor when voltage on C4 goes below level set by Zener diode D4 and D5.

Because of this the output voltage stays stable even if input voltage or load changes.

Control signal for thyristor work like this: main AC voltage goes through capacitor C1 to Zener diodes D4 and D5 which cut it to 30 Vpp.

Thyristor turns ON at start of this limited voltage which passes through C2 and R2.

Electrical characteristic of SCR 5P4M:

AttributesSymbolTest ConditionsMinTypMaxUnitRemark
Repetitive Peak Reverse CurrentIRRMVRM​=VRRM​100μATj​=25∘C
VRM​=VRRM​2mATj​=125∘C
Repetitive Peak Off-state CurrentIDRMVDM​=VDRM​100μATj​=25∘C
VDM​=VDRM​2mATj​=125∘C
Critical Rate Rise of Off-state VoltagedV/dtTj​=125∘C40V/μsVDM​=2/3 VDRM​
On-state VoltageVTMITM​=10 A1.4V
Gate-trigger CurrentIGTRL​=100 Ω10mA
VDM​=6 VV
Gate-trigger VoltageVGTVDM​=6 V1.5V
RL​=100 ΩV
Gate Non-trigger VoltageVGDTj​=125∘C0.2VVDM​=1/2 VDROM​
Holding CurrentIHITM​=10 A6mAVDM​=24 V
Circuit Commuted Turn-off TimetqVR​≥25 V50μsITM​=5 A$V_{DM}=2/3~V_{DRM},\) diRdt /= 15 A/μς$
Tj​=125∘CμsdVD​/dt=10 V/μS
Thermal ResistanceRm(j-c)Junction to case DC3°C/W
Rth(j-a)Junction to ambient DC65°C/W

How to Build:

To build a Simple Transformerless Power Supply 30V 1Amp Circuit follow the below mentioned connections steps:

Gather Parts:

  • Assemble all the required parts needed for the circuit like capacitors, resistors, thyristor and Zener diode.

Make Circuit:

  • Use circuit diagram from above diagram and build it on breadboard or PCB.

Capacitor Setup:

  • Put capacitor C1 in series with AC voltage source.
  • Put capacitor C2 in parallel with C1 and in series with resistor R1.

Thyristor Setup:

  • Connect gate of thyristor from where C2 and R2 meet.
  • Connect anode of thyristor to positive side of C5 and cathode to output side.

Zener Diode Setup:

Put Zener diode D4 and D5 in parallel with C2 and R1.

Final Check:

  • Check all the wire and part connections again and be sure no wires are short or with wrong connection.

Power On:

  • Turn ON the power and see if circuit works correct.
  • Be careful as this is high voltage so one should follow safety.

Testing:

  • Check output voltage with different load and check the voltage stays stable.

Note:

  • Be careful while working with high voltage.
  • We should only try if one is aware of what they are doing.
  • Take safety measures at all time.

Conclusion:

This Simple 30V 1Amp Transformerless Power Supply Circuit is small size and with low cost.

It is good for low power electronics.

But it is not having isolation between input and output so we must be careful.

Always use safety when using this type of power supply.

References:

Transformerless power supply

Datasheet SCR 5P4M
