Simple DC High Low Voltage Cut Off Circuit

If our device need right DC power to work safe then this Simple DC High Low Voltage Cut Off Circuit work like a guard.

If battery is too low then circuit stop power to save our device.

If battery is too high then also circuit stops power to protect.

This circuit keep device safe from bad battery power.

Circuit Working:

Parts List:

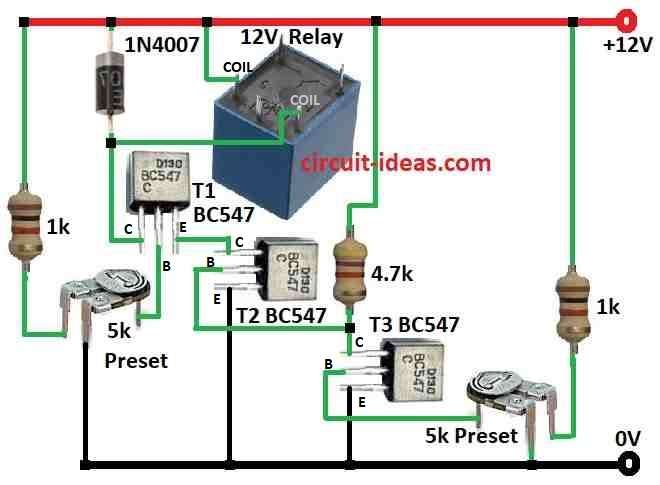

This circuit has 3 BC547 transistors and each one works like a small switch.

Transistors stay ON by default because of base resistors.

Two variable resistors set the cut-off voltages with one for low and one for high.

They connect to battery voltage through 4.7k and 5k resistors.

If voltage is too high then middle transistor turns OFF.

If voltage is too low then left transistor turns OFF.

Relay is controlled by these two and if any one turns OFF then relay also turns OFF and cuts power to device.

Circuit Problems:

No hysteresis as relay may switch fast again and again if voltage is not stable.

No base resistor as it may damage transistor.

No reverse polarity protection if there is wrong connection then it can harm the circuit.

Still its a simple way to stop power when voltage is too high or low.

Formulas:

Simple DC High/Low Cut-Off Circuit Using Formula.

We can make easy voltage cut-off circuit using voltage divider formula:

Vout = Vin × (R2 / (R1 + R2))

where:

• Vout is the voltage where circuit cuts power
• Vin is the battery voltage for input voltage
• R1 is the first resistor in diagram 1k + top part of preset
• R2 is the second resistor in diagram with bottom part of preset

How to Build:

To build a Simple DC High Low Voltage Cut Off Circuit following are the steps mentioned:

• Follow the circuit diagram and collect all parts.
• Put the parts on PCB as per schematic.
• Set them based on our use.
• Connect adjustable DC power supply.
• Slowly increase voltage and watch relay turn ON at high cut-off.
• Then lower the voltage and relay should turn OFF at low cut-off.
• Check all connections before power ON.
• Start with low voltage which go up slowly.
• Use correct voltage and current rated parts.
• If not sure ask for expert help.

Conclusion:

In this Simple DC High Low Voltage Cut Off Circuit for better safety we need to add hysteresis, base resistors and reverse polarity protection.

For more details read the full datasheet or ask electronic expert for any help.
