Low Power Led Flasher Circuit using Nand Gate IC

Last updated on 21 August 2025 by Admin-Lavi Leave a Comment

Make your led blink easy with this easy to make Low Power Led Flasher Circuit using Nand Gate IC

It uses IC CD 4093, a quad Nand gate with Schmitt trigger input.

Circuit makes led blink with very less power and it can run from small 6V battery also.

Circuit Working:

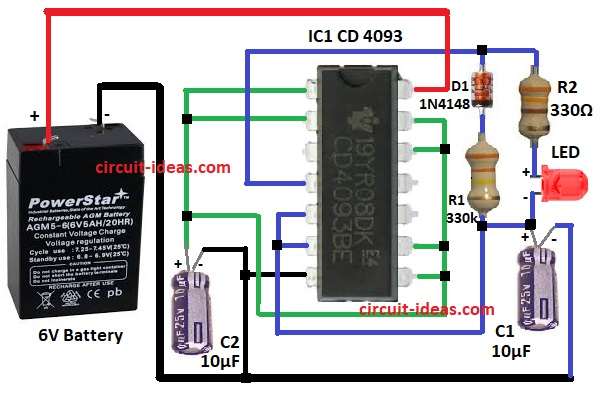

Low Power Led Flasher Circuit Diagram using Nand Gate IC

Parts List:

Component typeValuequantity
Resistors330k ohm 1/4 watt1
330 ohm 1/4 watt1
CapacitorsElectrolytic 10uF 10V or 16V2
SemiconductorsIC CD 40931
Diode 1N41481
LED any color1
Battery 6V1

The above circuit diagram uses one nand gate from CD 4093.

This IC have 4 nand gates inside and pin 1,2,8,9,12,13 are joined so they act like inverter.

Capacitor C1 and resistor R1 make timing network.

When power is ON, C1 capacitor charge through R1 and diode D1.

This makes input change slow and Schmitt trigger make output change fast after one level.

So led blink ON and OFF.

Diode D1 gives fast discharge for C1 so duty cycle is correct.

Resistor R2 limit current of LED

Formula:

Formula for time period t = 0.693 × R1 × C1

Frequency f = 1 / t

here,

  • R1 is 330k
  • C1 is 10uF

t = 0.693 × 330000 × 0.00001 = 2.28 seconds approx

So LED will flash around every 2.3 second

How to Build:

To build a Low Power Led Flasher Circuit using Nand Gate IC following are the steps to follow:

  • Take all parts same like in circuit picture.
  • Connect pin 1,2,8,9,12,13 of IC 4093 to + of 6V battery and + of capacitor C2 and negative of C2 goes to ground.
  • Connect pin 7 of IC to ground.
  • Connect pin 14 of IC to + of 6v battery.
  • Connect pin 4 of IC to point of diode D1, resistor R2 and anode of LED.
  • Join pin 5 and pin 6 together.
  • Put diode D1 and resistor R1 between pin 4 and pin 6.
  • Connect + of capacitor C1 to cathode of LED and negative of C1 goes to ground.

Conclusion:

This is a very low cost and Low Power Led Flasher Circuit using Nand Gate IC

It uses only one IC, two capacitors, two resistors, one diode and one led.

This circuit can be used in small toys, indicators and hobby projects.

References:

Datasheet CD 4093
