An automated staircase light circuit is a device that activates the lights on your steps only when someone is using them and automatically switches them off after a certain amount of time.
This is an excellent approach to increase home safety and conserve electricity.
Circuit Introduction:
Regular stair lights: These might be troublesome to turn on and off manually from switches at the top and bottom of the steps.
Additionally, they might inadvertently be kept on, wasting energy.
Automatic stair lights: Motion sensors are used by automatic stair lighting to identify individuals on the steps.
It automatically turns the lights down after a certain amount of time to conserve energy when it detects a human presence.
How it functions:
The motion sensor functions similarly to a specialized detector that can detect body heat.
It transmits a signal to switch on the lights when it detects heat from a person using the stairs.
The sensor is simple to operate and offers options to customize its sensitivity and duration of illumination.

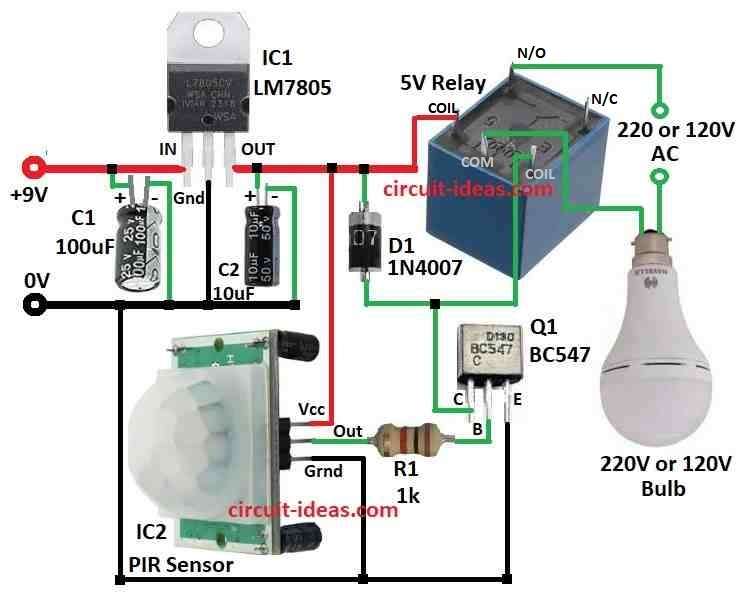

Circuit Working:
Parts List:
| Category | Item | Quantity | Notes |
|---|---|---|---|
| Resistor | 1k | 1 | |
| Capacitors | Electrolytic 100μF 25V | 1 | |
| Electrolytic 10μF 25V | 1 | ||
| Semiconductors | IC LM7805 | 1 | |
| IC2 PIR Sensor | 1 | ||
| Transistor BC547 | 1 | ||
| Diode 1N4007 | 1 | ||
| Relay 5V | 1 | ||
| Other | 220V to 120V Bulb | 1 |
This circuits simplicity comes from the fact that it just requires easily accessible components.
The PIR sensor has two important connections: one for the output signal and the other for adjusting the sensitivity.
After that, this output is sent to a switching transistor Q1 via a resistor R1.
A unique type of relay known as an SPDT is used in this circuit.
The main supply voltage Vcc powers the coil of this relay, which functions similarly to a switch.
The relay coil is energized when the transistor Q1 comes on and permits current to pass through it.
The staircase light turns on when this energizing motion flicks the internal switch of the relay.
On the other hand, the light stays off while the transistor is off since the relay stays open.
We employ a bridge rectifier to guarantee a steady and reliable power supply for the whole circuit.
This part transforms your homes incoming AC electricity into pulsing DC.
Ultimately, this pulsing DC is smoothed down into a continuous 5V DC supply by the IC 7805 voltage regulator chip, which is ideal for powering the PIR sensor and other low voltage components.
The bulb is connected to the phase line and the N/O contact of the relay, the relays pole terminal is linked to the AC supplies neutral line.
A stepdown transformer that converts 230V AC primary to 9V AC 500mA secondary is employed here.
PIR sensors need some time to settle during that period their output varies at random for 10 to 50 seconds before returning to normal and being capable of detecting motion.
Formulas:
You can create a simple circuit that uses a PIR (Passive Infrared) sensor to detect motion and regulate the staircase light in order to develop an automatic staircase light circuit.
Here is a important formulas and factors to take into account for each part:
Calculating Transistor Base Resistor:
BC547 Base Resistor:
To make sure the transistor is properly biased and saturated, determine the base resistor RB:
RB = Vin−VBE / IB
where,
- The PIR sensor voltage is represented by Vin
- The base emitter voltage (usually around 0.7V for BC547) is represented by VBE
- The base current is represented by IB.
With the help of a PIR sensor and relay control, this circuit offers a basic foundation for an automated staircase light that activates when a person approaches and switches off after a certain amount of time.
Depending on the desired functioning and particular component characteristics, adjustments and fine-tuning could be required.
How to Build:
To build a simple automatic staircase light circuit follow the below mentioned steps:
- Gather the components as shown in diagram.
- Connect IC1 7805 pin IN to 9V power supply.
- Connect IC1 7805 GND pin to ground.
- Connect IC1 7805 OUT pin to first leg of 5V relay.
- Connect capacitor C1 from pin IN of IC 7805 to ground.
- Connect capacitor C2 to OUT pin of IC1 7805 to ground.
- Connect D1 diode from IC1 7805 OUT pin to third leg of 5V relay.
- Connect IC2 Vcc pin of PIR senor to IC1 7805 OUT pin supply.
- Connect IC2 OUT pin of PIR sensor to base of transistor Q1 through resistor R1.
- Connect IC2 Gnd pin of IC2 PIR sensor to ground.
- Connect transistor Q1 collector between D1 and 5V relay, connect base of transistor Q1 to OUT pin of IC2, connect emitter of transistor Q1 to ground.
- Connect a 220V to 120V bulb from one end of center leg and fourth leg of 5V Relay.
Safety Notes:
- Make sure all of the smoke detectors in your house are in functioning order.
- This includes the ones beside the stairway on every story.
- Install emergency lighting in the event of a power loss, think about keeping a backup light source that runs on batteries.
Conclusion:
To conclude, by utilizing a PIR sensor to detect motion and automatically switch on the lights this automatic staircase light circuit provides a practical and energy saving solution.
The circuit has adjustable sensitivity and light on time and uses standard components.
Always put safety first by using appropriate electrical procedures and, if necessary seeking advice from a licensed electrician.
