A Simple Light to Frequency Converter Circuit is a complex circuit that changes in light brightness into a frequency signal.
This process is super useful in many areas like measuring light, sensing with optics and different automation jobs.
The circuit uses a IC 555 timer chip working in astable mode along with a photodiode that picks up the incoming light.
The cool part is that the frequency it produces is directly related to how bright the light is that hits the photodiode making it easy to see the connection between light intensity and frequency output.
Circuit Working:
Parts List:
| Component Type | Component | Quantity |
|---|---|---|
| Capacitor | Ceramic 0.01µF | 1 |
| Semiconductors | Timer IC 555 | 1 |
| Photodiode | 1 | |
| Battery | 6V Battery | 1 |
In this post when illumination strikes the photodiode, it produces a diminutive photocurrent.
The IC 555 timer functions in an astable configuration, wherein the capacitor C1 undergoes a continuous cycle of charging and discharging thereby creating a pulsed output signal.
The duration required for the capacitor to charge is affected by the resistance of the photodiode, a variable that fluctuates in accordance with the intensity of the incoming light.
As the intensity of the light increases, so too does the photocurrent which in turn modifies the charge and discharge cycle ultimately leading to a change in the output frequency.
Consequently, the output at pin 3 of the 555 timer generates a square wave signal with its frequency being directly proportional to the level of light that impinges upon the photodiode.
Formulas:
The formulas for Simple Light to Frequency Converter Circuit using Timer IC 555 is mentioned below:
The frequency of the output signal is given by the standard astable mode formula of a 555 timer:
f = 1.44 / (RA + 2RB)C
where,
- f is the frequency in Hz
- RA and RB are the resistors affecting the charge/discharge cycle
- C is the capacitor C1
In this circuit:
The photo diode works like a resistor that changes depending on how much light there is.
When the light gets brighter the resistance goes down which makes the oscillation frequency go up.
By changing the values of the components and using a light source that is measured correctly, we can adjust the circuit to measure light intensity very accurately.
How to Build:
To build a Simple Light to Frequency Converter Circuit using Timer IC 555 following steps are needed to follow for connections and assembyling:

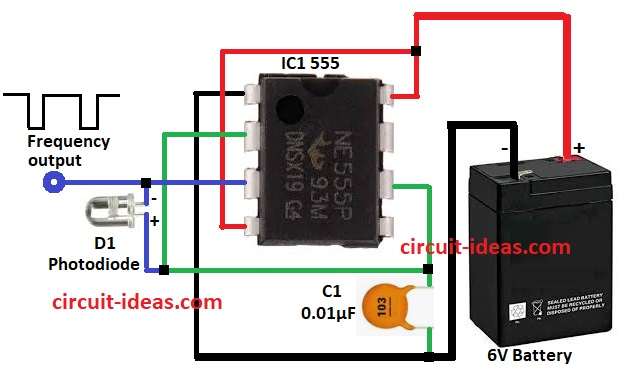

- Assemble all the components mentioned in the above circuit diagram.
- Connect the 6V battery positive power supply to pin 4 and pin 8 of IC1 and pin 1 of IC1 to GND
- Connect the photo diode D1 between pin 2 and pin 3 of IC1 and GND.
- Connect capacitor C1 from pin 6 of IC1 and GND.
- Connect the output signal from pin 3 of IC1 which will be a square wave with varying frequency based on light intensity.
Conclusion:
Simple Light to Frequency Converter Circuit using Timer IC 555 is an easy and efficient tool for measuring how bright light is.
It uses a IC 555 timer along with a photo diode.
The frequency of the output changes based on the amount of light hitting the sensor.
This makes it great for things like light meters, optical sensors and automation systems.
Building the circuit is simple and it gives a dependable output based on frequency which can be used with microcontrollers or frequency counters.
