DC Voltage Doubler Circuit

DC Voltage Doubler Circuit is like small power booster, which takes normal battery power and make almost double.

Also, it use smart parts like diodes and capacitors and they work like tiny switch and small electric bucket; sometimes many also use transistor or tiny chip to help.

Imagine electric flow from battery like small stream, then this circuit cut stream in pieces and then fix it by making it flow strong again like a double power coming out.

Circuit Working:

Parts List:

Components	Values	Quantity
Resistors (All resistors are 1/4 watt)	1k	1
	10k	1
	100Ω	1
Capacitors	Ceramic 0.01µF	2
	Electrolytic 100µF 25V	1
	Electrolytic 10µF 40V	2
Semiconductors	IC 555	1
	Transistors T1 BD139 and T2 BD140	1 each
	Diodes 1N4002	2

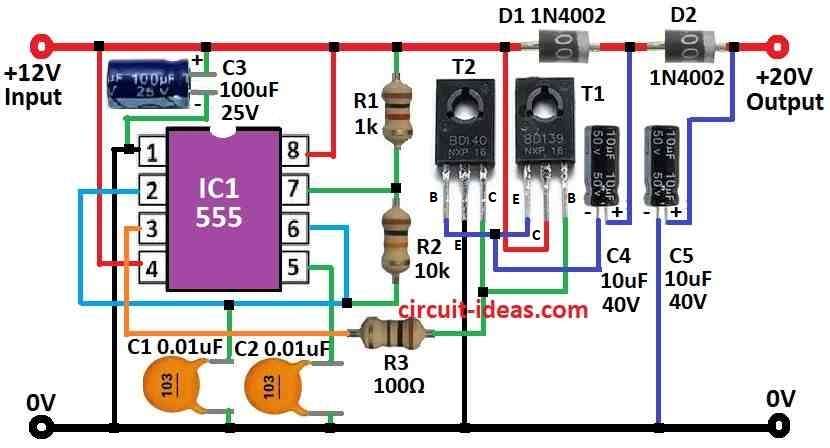

This circuit uses 555 IC to make square wave signal and then it goes to last part with two transistors T1 and T2.

Furthermore, real voltage boost happen with four parts: D1, D2, C4 and C5 and the 555 IC work as astable multivibrator it give about 8.5kHz signal.

Also, this signal control T1 and T2 and turn them ON and OFF again and again.

How voltage doubling happen:

When signal is low then T1 is OFF and T2 is ON and then C4s negative side connects to ground and it charge through D1.

When signal is high:

T1 is ON T2 is OF and C4 cannot discharge because D1 blocks it.

Now C5 charge from C4 plus power supply of 12 and so C5 get more voltage like 12V + charge from C4.

Normally output is around 20V if current not more than 70mA, but really it stays near 18V, but efficiency is not so great but about 32%.

Also, if one take less current then voltage goes little higher and if one want steady voltage then can add 3 pin voltage regulator IC.

But be careful, regulator IC also use current and total current (load + IC) should not go over 70mA.

Formula:

To get more DC voltage from small one we can build a voltage doubler circuit; also main idea is to use 555 IC to make square wave and use that with transistors, diodes, capacitors and resistors to double voltage.

There is a simple formula to imagine output voltage (Vout):

V_out ​= 2 × V_in​ − V_D​ − V_drop​

where:

• Vin is the input voltage
• VD is voltage drop on diodes which is usually around 0.7V each
• Vdrop is drop from transistors or other parts

This formula give rough idea how much voltage one will get at output, but to make this work correct all the time one needs to choose parts carefully and connect them the right way.

How to Build:

To build the DC Voltage Doubler Circuit we needs to follow the below mentioned assembling steps:

Gather All Parts Ready:

• First, collect all the parts one needs and check they match what circuit design says.

Build the 555 Timer Circuit:

• Next, use 555 IC to make astable circuit and check 555 datasheet and connect resistors and capacitors to get around 8.5kHz frequency.

Add Transistors T1 and T2:

• After that, connect T1 and T2 to the 555 output, ensure we wire them correctly and follow their datasheets for proper pin connections and biasing.

Hook Up Diodes and Capacitors (D1, D2, C4, C5):

• Now connect D1, D2 and capacitors C4, C5 and then watch carefully the diodes and capacitors have polarity and connect the correct side.

Test the Circuit:

• Turn ON the power and check voltage across C5 which should be around 20V if input is 12V.

Fix All Wires:

• If working fine protect the wires.
• Be sure nothing is loose or shorted.

Check with Load and Adjust if Needed:

• Try different loads to see if voltage stays stable.
• Adjust things if output is not what one wants.

Note:

• If we follow each step slowly and connect things the right way the voltage doubler should work fine!.

Conclusion:

To conclude, a DC Voltage Doubler is small circuit that take low voltage and make it almost double; it uses diodes, capacitor, and some switching parts to do this job.

Furthermore, this circuit helps users obtain a higher voltage from a small power source as it operates simply without requiring large transformers or complex wiring and only needs a smart setup with a few components.
