Simple Two Transistors Amplifier Circuit using 1.5V Battery

Last updated on 2 June 2026 by Admin-Lavi Leave a Comment

This Simple Two Transistors Amplifier Circuit using 1.5V Battery works like loudspeaker for small sounds, as it uses 2 small parts called transistors and 1.5V battery to make weak sound strong.

Also, it is simple mini amplifier which are good for small projects for making music sound better.

Circuit Working:

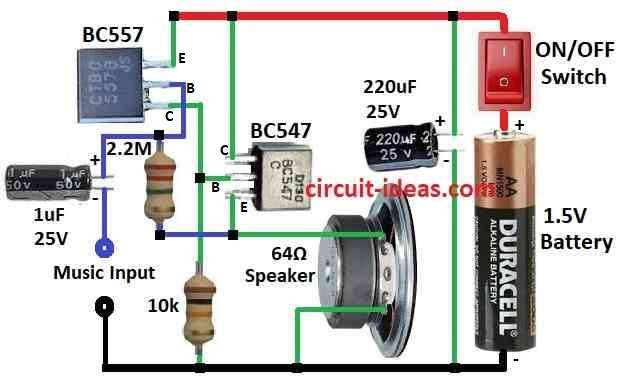

Simple Two Transistors Amplifier Circuit Diagram using 1.5V Battery

Parts List:

ComponentsValuesQuantity
Resistors (All resistors are 1/4 watt unless specified)2.2M, 10k1 each
CapacitorsElectrolytic 1µF 25V, 220µF 25V1 each
SemiconductorsTransistors BC547, BC5571 each
ON/OFF Switch1
64Ω Speaker1
Battery 1.5V1

To begin with, this above circuit gives clear sound and has many good features.

How it works:

Two transistors connect directly and this gives big gain means the loud sound, also the speaker has high impedance of 64 ohm which still gives good sound even with low 1.5V battery.

Here, the speaker works like motor and coil makes magnet force with amp turns and pushes speaker cone.

More ampere-turns produce louder sound; therefore, we can create ampere-turns in two ways:

Coil with few turns + high current

Or coil with many turns + low current.

Transistor action:

2.2M resistor turns on BC557 and this BC557 base is 0.6V below 1.5V to around 0.9V.

Hence, this turns on BC547 and this BC547 pulls current to positive and lowers voltage on 2.2M resistor.

Speaker has resistance so BC557 cant fully raise BC547 and at rest only 0.05mA goes through speaker which is very small.

When working signal makes voltage swing from 0V to 0.9V and this 0.9V goes to speaker and makes sound.

Formulas:

Basic Formulas for Transistor Amplifier Circuit:

1. Voltage Gain (Av):

Shows how much output is bigger than input.

Av = Vo / Vi

where,

  • Vo is the output voltage
  • Vi is the input voltage

2. Gain in dB decibels:

Shows gain in sound level units.

Gain (dB) = 20 × log10(Av)

3. Collector Current (Ic):

Tells how much current goes through transistor.

Ic = (Vcc – Vce) / Rc

where:

  • Vcc is the supply voltage like battery 1.5V in this circuit
  • Vce is the voltage from collector to emitter
  • Rc the resistor connected to collector

Note:

Circuit construction and transistor connections may slightly alter these formulas and therefore, for a real audio amplifier, we should use a higher voltage, preferably more than 1.5V.

Always think about power and parts while designing the circuit.

How to Build:

To build a Simple Two Transistors Amplifier Circuit using 1.5V Battery follow the below mentioned steps:

Transistor Connections:

  • First, connect collector of BC547 to +1.5V battery, emitter of BC547 to one side of speaker and connect other side of speaker to ground.
  • Also, connect base of BC547 to collector of BC557 and also to ground through 10k resistor.
  • Then connect base of BC557 to emitter of BC547 using 2.2M resistor.
  • Next, connect audio input to base of BC557 using 1µF capacitor and also put 220µF capacitor across battery with (+) and (-) sides.
  • Now add ON/OFF switch to +1.5V battery wire and then connect negative side of battery to ground.

Testing:

  • Turn ON the circuit and connect audio like phone sound to input and also listen to speaker.
  • Then change input volume and check the sound.

Note:

  • This circuit always makes weak sound strong, also speaker gets enough power to make sound.
  • We can change parts for better sound or different needs.

Conclusion:

Overall, this is Simple Two Transistors Amplifier Circuit using 1.5V Battery which makes one sound louder and second helps match the load.

Also, this type of circuit is good for basic audio jobs.
