Simple 1.5V to 5V Voltage Converter using IC MAX756

Last updated on 21 June 2025 by Admin-Lavi Leave a Comment

This Simple 1.5V to 5V Voltage Converter using IC MAX756 works like small power booster for battery.

It takes low 1.5V battery like AA battery and makes it higher like 5V.

This help for running small electronic things that need 5V for working good.

The MAX756 chip is like small hero it help circuit change voltage in smart way.

Circuit Working:

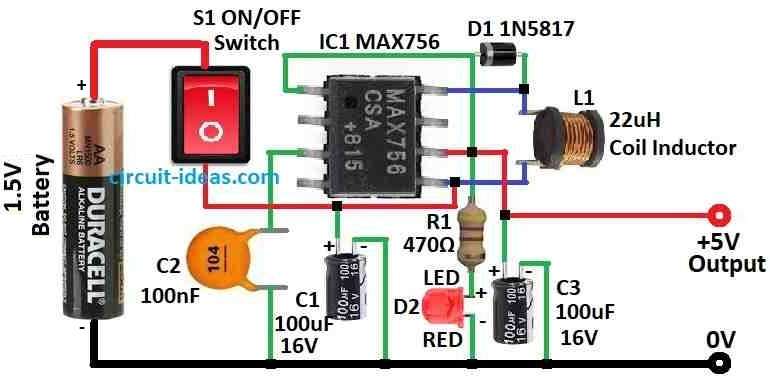

Simple 1.5V to 5V Voltage Converter using IC MAX756 Diagram

Parts List:

CategoryComponentQuantity
Resistor470Ω 1/4 watt1
CapacitorsCeramic 100nF1
Electrolytic 100µF 16V2
SemiconductorsIC MAX7561
Diode 1N58171
LEDs Red 5mm 20mA1
Coil Inductor 22uH1
ON/OFF Switch1
Battery 1.5V1

This circuit gives stable 5V DC power up to 200mA from normal 1.5V AA battery.

Main part in this design is MAX756 chip from Maxim which is a step-up switch chip for low battery power stuff.

MAX756 can take small voltage like 0.7V and make it higher like 5V or 3.3V as user want.

This chip works very good and gives more than 87% power efficiency when it is fully loaded

Inside the chip it have switch regulator, N channel MOSFET, voltage reference and power fail detector all in one chip.

MOSFET is special type called sense FET which is made for better efficiency. It can start even when battery is low like 1.1V.

We can make this circuit easy on small PCB and keep wires and connections short.

If possible use good 8 pin DIP socket for chip it will help.

Also power inductor L1 is important its DC resistance should be very low like 0.03 ohm or less for good efficiency.

Capacitors also matter their ESR (equivalent series resistance) affect the efficiency.

Use low ESR type capacitors for best performance.

Formula:

Before using the formula it is important to know even if MAX756 can work in boost converter circuits it is not made mainly for that.

So maybe not best choice for all cases.

Here is formula:

Vout = Vin / (1 – D / Dmax)

where:

  • Vout is the output voltage
  • Vin is the input voltage
  • D is the duty cycle for how much time switch is ON
  • Dmax is the max duty cycle chip can allow

This formula means output voltage goes up when duty cycle goes up.

But IC have a limit and that is Dmax so output voltage cannot go higher than what Dmax allow.

How to Build:

To build a Simple 1.5V to 5V Voltage Converter using IC MAX756 use the following steps mentioned below:

Make the PCB:

  • First make or get PCB layout for the circuit.
  • Put all parts on PCB same like in circuit diagram.

Solder parts:

  • Solder IC socket if using and all other parts on PCB.
  • Start with small parts first then big ones.

Connect parts:

  • Use thin wire with insulation to join parts like in diagram.
  • Keep wires short and neat.

Put the IC:

  • If anyone is using socket then put MAX756 chip in socket.
  • Be sure notch on IC should match with notch on socket.

Test the circuit:

  • Put 1.5V AA battery in holder.
  • LED should turn ON that means circuit is working and giving 5V output.

Finish the circuit:

  • If all is working good then fix parts and wires with hot glue or other glue so that they do not move.

Note:

  • Be careful while working with electronics and use safety glasses and stay safe from static electricity.

Conclusion:

Simple 1.5V to 5V Voltage Converter using IC MAX756 chip give easy and good way to change low 1.5V to stable 5V.

It is good for powering many small electronic things using one AA battery or same type power.

This circuit is not hard to make and it needs only few parts and give reliable 5V with nice efficiency.

References:

Datasheet IC MAX756
