Fast Charger Circuit with Auto Cut Off

Last updated on 27 May 2026 by Admin-Lavi Leave a Comment

To begin with, this Fast Charger Circuit with Auto Cut Off is fast charger for battery like car battery or backup battery; also it charges battery very quick but there is no need worry it wont overcharge.

Furthermore, inside circuit there are safety part when the battery is full it stops charging by itself, this helps battery stay good and live longer.

So we can use it again fast for car or other things which need power.

Circuit Working:

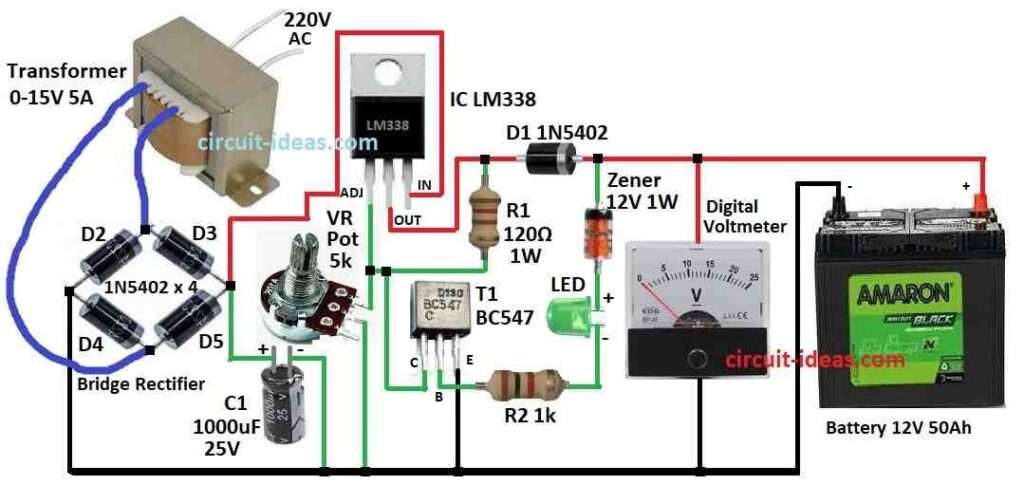

Fast Charger Circuit  Diagram with Auto Cut Off

Parts List:

ComponentsValuesQuantity
Resistors120Ω 1W1
1k 1/4 watt1
Potentiometer 5k1
CapacitorElectrolytic 1000µF 25V1
SemiconductorsIC LM3381
Transistor BC5471
LED Green 5mm 20mA1
Zener diode 12V 1W1
Diode 1N54021
Bridge Rectifier 1N54024
Digital Voltmeter1
Transformer 0-15V 5 Amp1
Battery 12V 50Ah1

This circuit quickly charges sealed lead-acid batteries used in cars, inverters and other devices also it delivers a high current of around 5 amps, so the battery charges faster.

Also, it have one adjustable voltage part so we can charge 6V and 12V battery both, when battery is full it charger stop by itself with no overcharge problem.

Main part is LM338 is strong voltage regulator it gives 2V to 25V DC and high current, also good things is, it gives 7 amp peak output which goes low as 1.2V and protects from heat.

Moreover, it is very easy to use and only needs two resistors to set output voltage; also it can give up to 12 Amp for short time which is good for fast startup and heavy load.

However, the LM338 gets hot, so it needs a heat sink for cooling; additionally, two resistors set the voltage: R1, a 120-ohm resistor, acts as the program resistor.

It uses 1.25V reference voltage between output and adjust pin and this voltage goes across R1 to keep current same.

Then VR1 set output voltage where we can use formula to calculate this voltage and input voltage come from 0-15V 5A transformer and 10A KBPC rectifier.

One capacitor C1 remove ripple and gives around 16V DC to LM338 and VR variable resistor helps to adjust output from 2V to 15V.

Also, use digital panel meter to check voltage and connect meter to output and change VR to see voltage on meter.

If voltage drops from AC line then meter show it; meter also show battery voltage when there is no power and if reading is same and steady battery will be full and good.

Auto cut-off part use 5A Darlington NPN transistor BC547.

When battery goes above 12.5V Zener diode turn ON and stop LM338 and when battery goes below 12V Zener turn OFF and LM338 start again.

For 12V battery full charge is 13.5V and for 6V battery it is 6.5V, so set charge voltage to 14V for 12V battery and 8V for 6V battery.

Also, use thick red and black wires with crocodile clips for battery connection and check polarity before connection.

Before plugins into wall power, connect clips to battery and check the voltage and if battery voltage is less than 13.5 or 6.5 then turn on the charger and wait up to 1 hour.

After that wait for 10 minutes and check voltage again and if voltage is steady then battery is ready to use.

Formulas and Calculations:

Here, is some main formula and important things to remember when making fast battery charger with auto cut off using LM338 voltage regulator and other parts:

Voltage Control with LM338:

LM338 use outside resistors to give set voltage.

Formula for output voltage:

Vout = Vref × (1 + R2 / R1) + Iadj × R2

where,

  • Vref fixed voltage from LM338 which is usually 1.25V
  • R1 and R2 are outside resistors we can connect to set output voltage
  • Iadj is very small current about 50μA which mostly we can ignore it

Controlling Charging Current:

Hence, we can use extra transistor like BC547 if charging current is too high for LM338 alone and to find charging current going to battery see the following formula:

Icharge = (Vout − Vbattery) / Rsense

where,

  • Vbattery is battery voltage
  • Rsense small resistor connected in line to measure current

How to Build:

To build a Fast Charger Circuit with Auto Cut Off follow the below mentioned connections steps:

  • First, connect transformer secondary side to KBPC rectifier which gives 0 to 15V DC output.
  • Next, connect Vin input of LM338 to DC from rectifier and then connect Vout output to battery.
  • After that, use two resistors R1 and VR1 to set output voltage of LM338, also check LM338 datasheet to get correct resistor values.
  • Use Zener diode and BC547 Darlington NPN transistor and connect same like in auto cut-off diagram and then connect digital meter to output to show battery voltage during charging.

Safety Tips:

  • Use good insulation on wires.
  • Connect proper heat sink to LM338.
  • Check all wires twice before turning ON.
  • Do not leave charger running without watching.
  • Be careful we are working with high voltage and current.

Important Note:

  • This circuit is for learning purpose only.
  • Follow local safety rules if using for actual circuit.
  • We may need to change components such as resistors, capacitors or the transformer depending on the battery we want to use and the parts available to us.

Conclusion:

To conclude, Fast Charger Circuit with Auto Cut Off is useful and smart way to charge battery fast and safe, as it stops charging when battery is full so there is no overcharge happen.

Also, this circuit uses LM338 voltage regulator with auto cut off circuit and is with adjustable voltage divider.

Finally, it can charge many types of batteries like car battery, inverter battery and more very well and safely.
